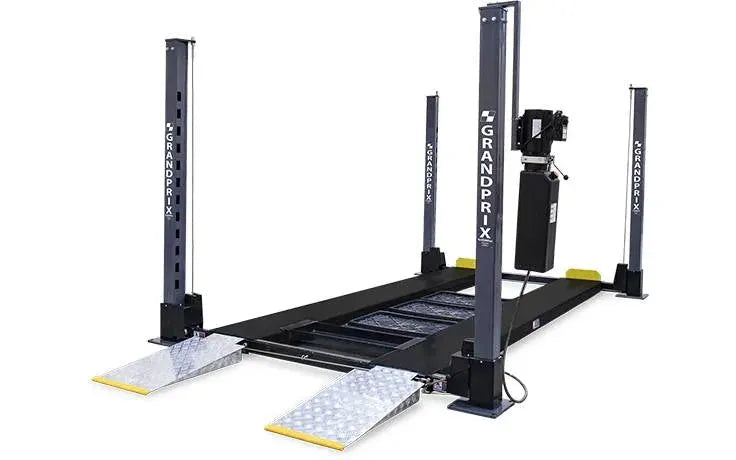

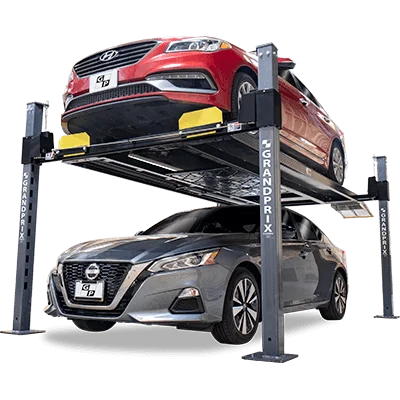

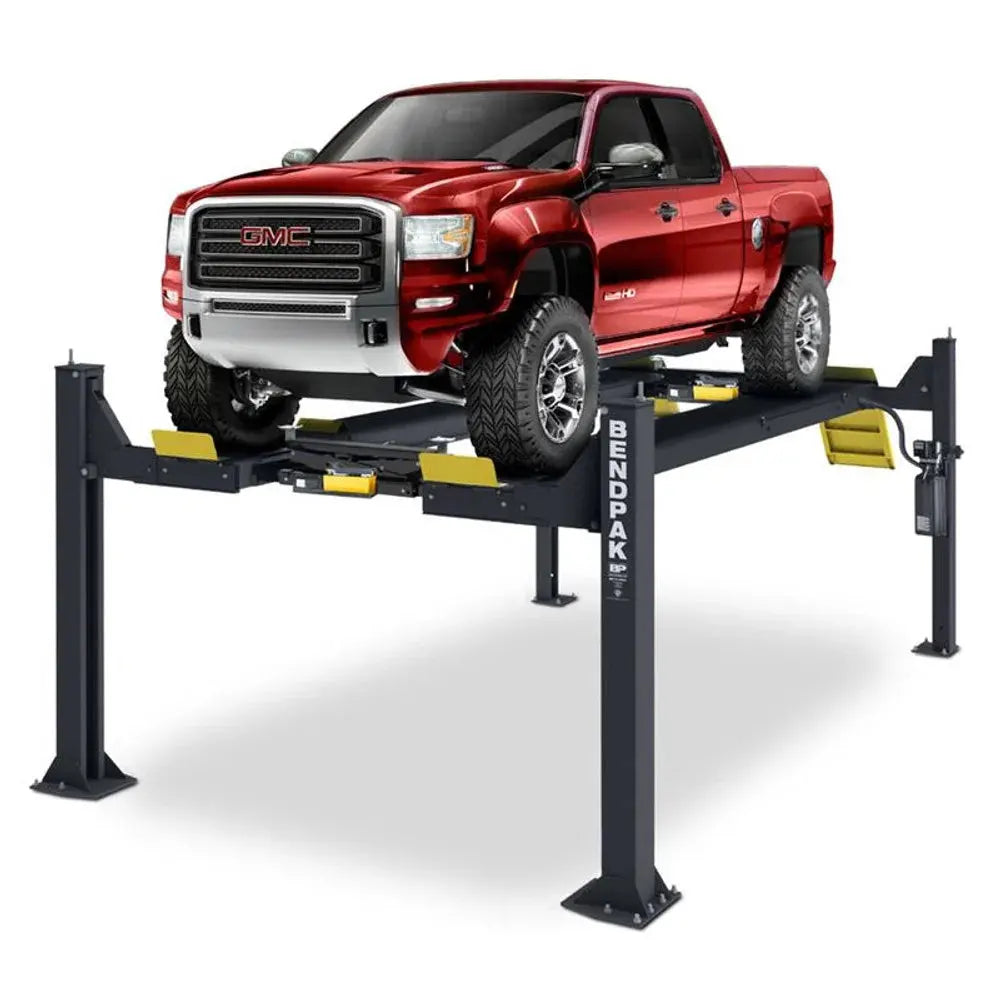

9,000-lb. Capacity / Includes Aluminum Ramps, Caster Kit, Jack Platform and Drip Trays

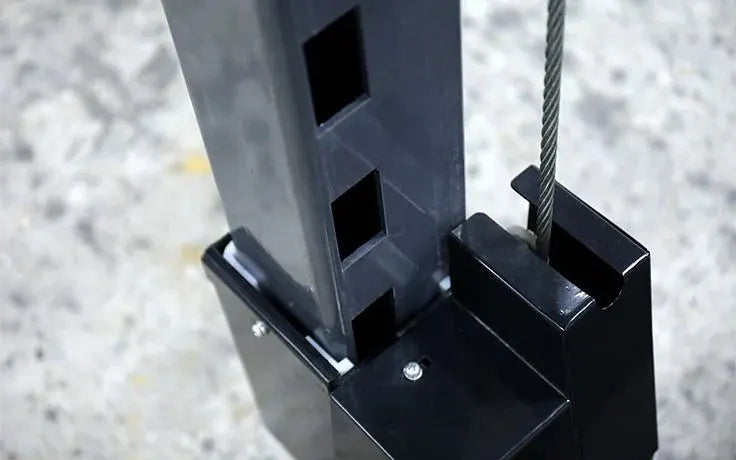

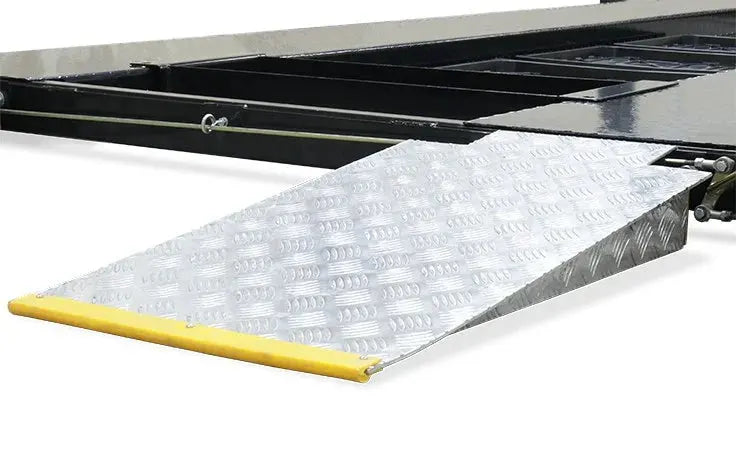

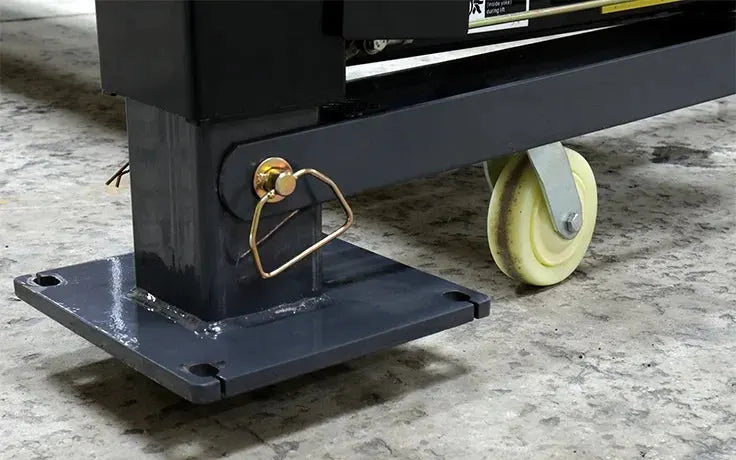

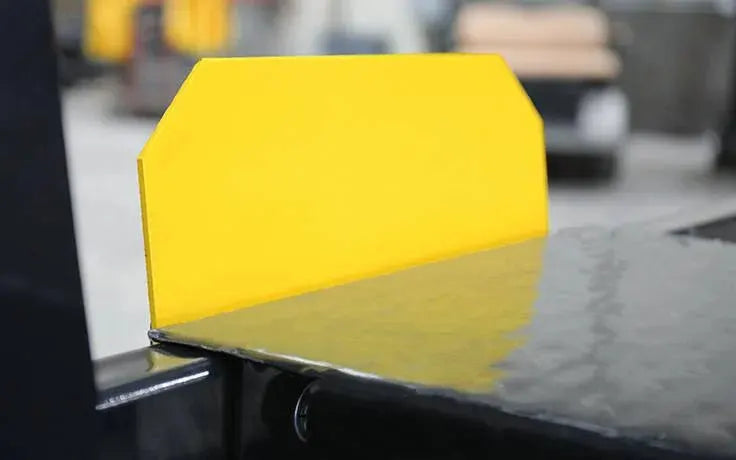

BendPak’s proven legacy gives you an edge in performance, service and cost of ownership. Designed to be fastened to the floor or free-standing. Comes standard with caster kit, drip trays, mobile jack tray, aluminum approach ramps, and hardened steel tire stops. Boxed-steel columns are made from structural 4.75” x 4.75″ welded steel tubing. Columns feature 12” x 12” baseplates 5/8” thick. Manual dead bolt locks are reliable and safe and are machined directly into the boxed-steel columns. 3/4″ thick steel safety locks are spring loaded for automatic and solid engagement. 13 positive locking positions are spaced every 4 inches. Secondary slack-cable lock system assures instant back-up safety lock engagement in the event of a cable failure. Exterior steel sleeves with UHMV slides surround each column to ensure positive contact and containment. ¾” thick safety locks are securely trapped by the full-perimeter cross tube sleeves and can’t become dislodged or disengaged. Welded-steel runways feature utility rail for jack tray and drip trays and other accessories. Runways are welded and boxed for extra strength. Built-in flow restriction integrated into the hydraulic cylinder to prevent free-fall. Oversize baseplates and pull-perimeter cross tube sleeves reduce lateral movement and sway when lift is free-standing. Low-profile runways are only 5″ high to accommodate low ride-height vehicles. Hardened steel safety lock linkages use 3/8” molded carbon steel rod ends to reduce flex and twist to ensure positive locking and smooth operation. Precision, reinforced rod ends with spherical bearings are protective coated for corrosion resistance and are designed to provide low friction and high wear resistance. 5/8″ thick top caps. Sheave axles feature hardened steel collars and snap rings. Pull out tire stops on both ends of the lift that allows drive through capability. Stainless steel lifting cables are rated to handle over 14,000 lbs. each. Cable keepers assures cables remain safely secure to the sheaves. Pre-assembled cables simplifies installation. 36″ aluminum approach ramps are gusseted to eliminate flex and bending. Non-marring heavy-duty poly caster wheels will not damages painted floor surfaces. Durable powder coat finish. 3/4″ runway bolts provide positive attachment with increased safety factor. Operator controls are simple to use, well-placed and ergonomically advanced to reduce operator strain and fatigue and increase safety. Electric/hydraulic power system. Single hydraulic cylinder underneath runway. Optional full-length aluminum platforms can be added to easily store lawnmowers, ATVs, jet skis or motorcycles. Capacity Lifting Capacity*:  9 000 lbs. (4 082 kg) *Max Capacity / Front Axle :4 500 lbs. (2 041 kg) *Max Capacity / Rear Axle: 4 500 lbs. (2 041 kg) Rise A – Min. Runway Height:5″ (127 mm) B – Max. Rise: 70″ (1 778 mm) C – Max. Lifting Height: 75″ (1 905 mm) Time to Full Rise: 45 seconds Outside Dimensions D – Overall Width: 114,5″ (2 908 mm) E – Outside Length: 176,5″ (4 483 mm) F – Overall Length: 203″ (5 156 mm) G – Height of Columns: 89″ (2 261 mm) Inside Dimensions H – Width Between Columns: 98″ (2 489 mm) I – Drive-Thru Clearance: 86″ (2 184 mm) Runways J – Runway Width: 18,75″ (476 mm) K – Length of Runways: 165,5″ (4 204 mm) L – Width Between Runways: 37,5″ (953 mm) M – Runway Centerline: 53,75″ (1 365 mm) N – Outside Edge of Runways: 72,5″ (1 842 mm) Minimum Wheelbase Rated Capacity: 115″ (2 921 mm) 75% Capacity: 100″ (2 540 mm) 50% Capacity: 85″ (2 159 mm) 25% Capacity: 70″ (1 778 mm) Locking Locking Positions: 13 Lock Spacing: Every 4” (102 mm) Power Unit Motor: STANDARD: 110VAC, 50-60HZ, 1PH, 20A or OPTIONAL: 208-230VAC, 50-60HZ, 1PH, 25A Noise: 45 dB Shipping Weight: 2,224 lbs. (1008.8 kg) Dimensions: 166” x 22” x 43” (4,203 mm x 4,203 mm x 1,092 mm)
